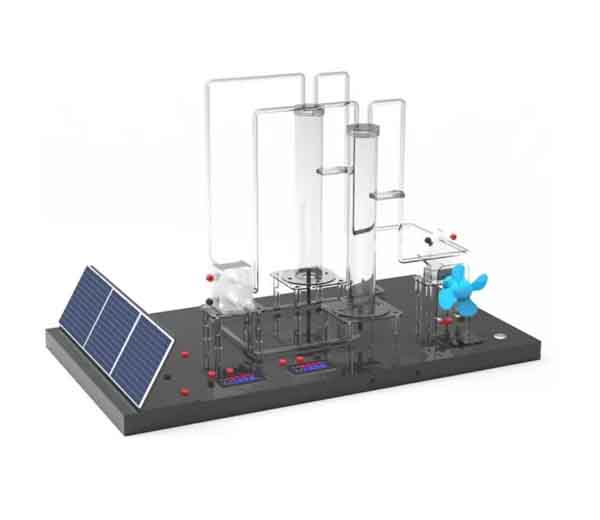

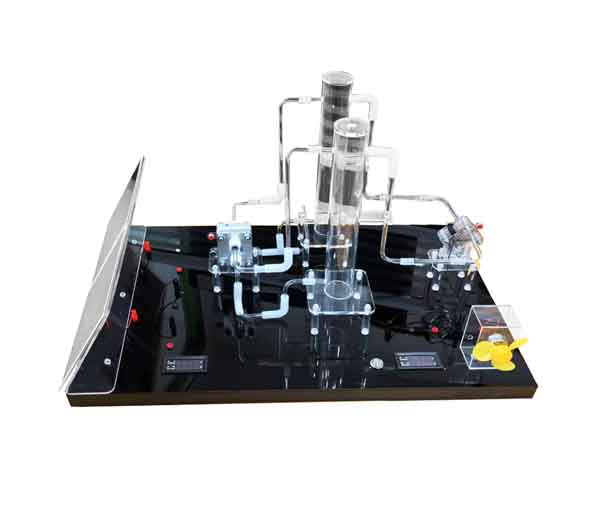

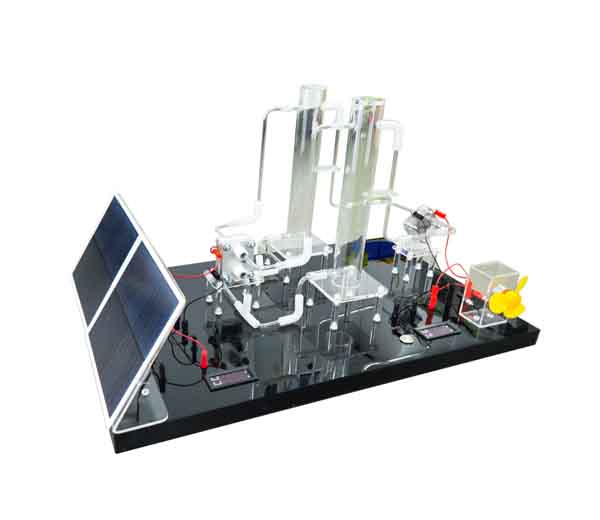

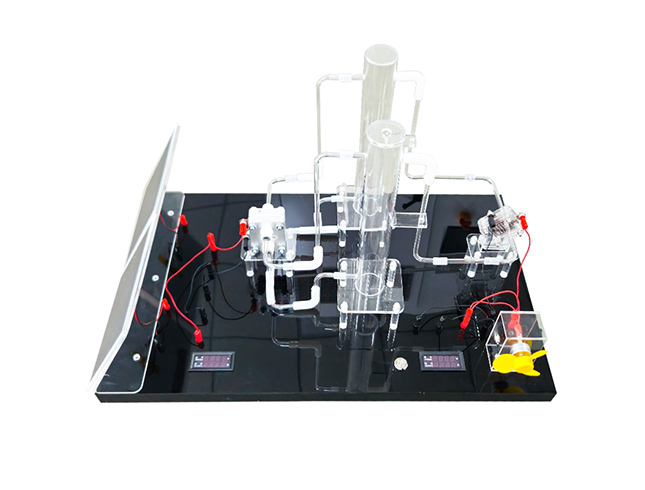

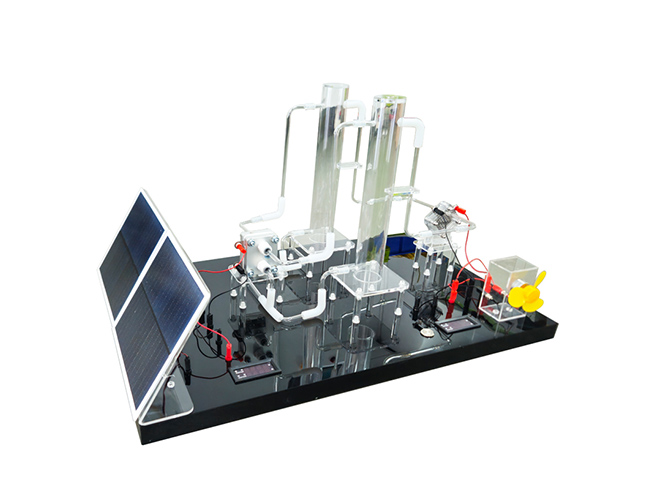

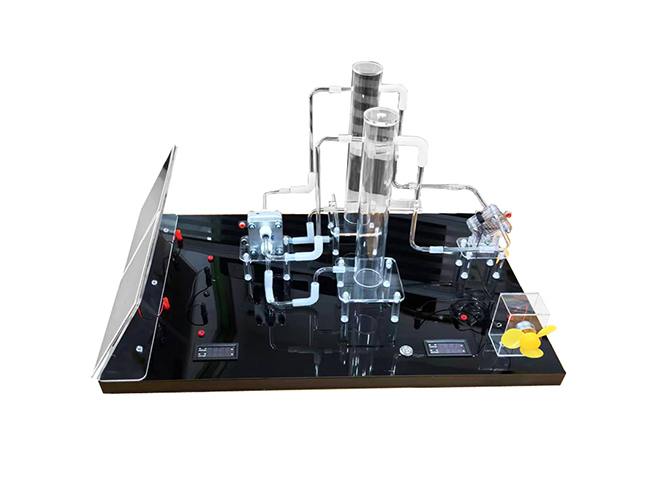

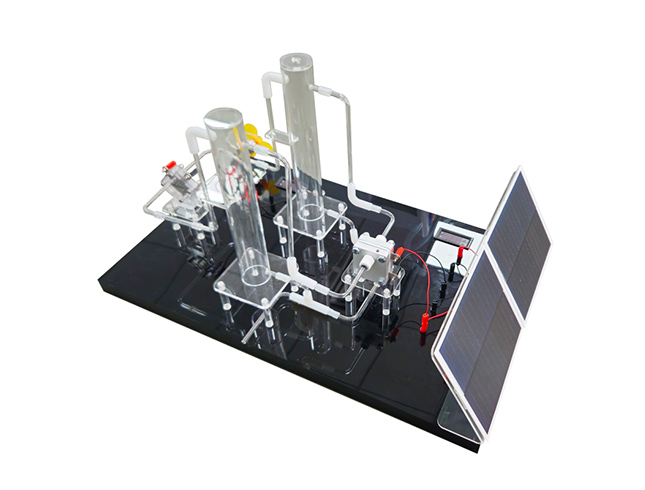

With the global energy transition accelerating, hydrogen energy, as a zero-carbon energy carrier, demonstrates immense potential in industries, transportation, and energy storage. Photovoltaic hydrogen production technology utilizes solar power to drive water electrolysis, enabling "green hydrogen" production—a critical pathway for renewable energy integration and large-scale hydrogen applications. However, this technology involves multi-stage coupling of light-electricity-hydrogen systems, necessitating educational tools to lower learning barriers and promote technical dissemination and talent development. This project aims to develop a teaching demonstration system integrating photovoltaic power generation, water electrolysis for hydrogen production, and hydrogen power generation. Through visual and interactive experimental setups, it intuitively demonstrates the full-cycle technical principles of renewable hydrogen production and utilization, advancing new energy education and research.
Core Components
1. Photovoltaic Power Generation Module：
High-efficiency monocrystalline silicon photovoltaic panel (≥20% efficiency) to simulate real-world solar power generation under varying light conditions. Real-time current and voltage monitoring.
2. Electrolytic Hydrogen Production Module:
Integrated Proton Exchange Membrane (PEM) electrolyzer (60 ml/min output) for hydrogen-oxygen gas separation via ion-selective membranes, showcasing dynamic water electrolysis processes.
3. Hydrogen Power Generation Module:
Fuel cell (1W) converts stored hydrogen into electricity, forming a closed-loop "solar-hydrogen-electricity" demonstration to validate hydrogen’s viability as an energy storage medium.
Features
Visual Design:
Transparent pipelines for observing gas generation, gas-liquid separation, and fuel cell operation.
Real-time current/voltage display on data panels.
Water Circulation and Safety:
Integrated gas-liquid separator and water tank for closed-loop water reuse.
Teaching Scalability:
Adjustable light intensity to simulate photovoltaic fluctuations, enabling studies on hydrogen production efficiency and dynamic load response.
