rotary double flame ampoule sealing apparatus -oxyhydrogen ampoule sealing flame torch machine

Details:

rotary double flame ampoule sealing apparatus OKRFH-2

Okay Energy rotary double flame torch OKRFH-2 is a set of ampoule sealing appatatus specially match for OH series of oxyhydrogen generators. It is mainly used to seal ampoule bottle within 1-25ml.There are two control function: pedal and automatic rotating control.

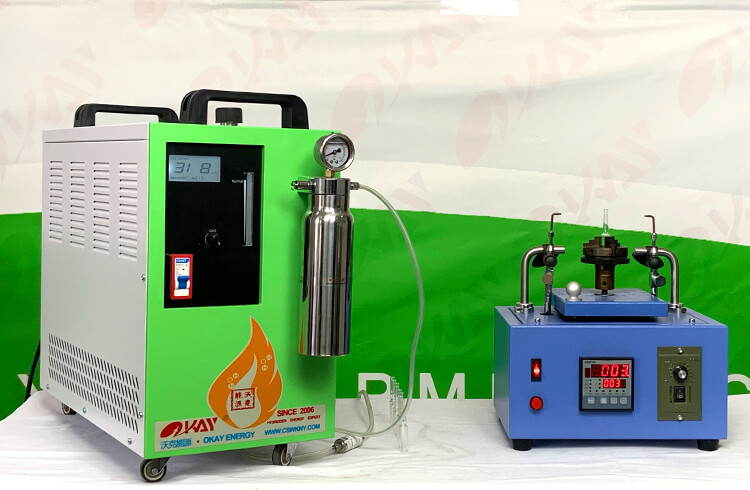

OH400 oxyhydrogen ampoule sealing machine

How does it work? Put the ampoule bottle on the workbench, there are two sets of oxyhydrogen flame melting, pedal or automatic rotating the workbench, manual seal the ampoule by tweezers. The sealing speed can be about 40~45 pieces ampoule per minute. Other applications：Suitable for maximum 12mm diameter, 15mm length quartz glass tube sealing.

Technical Parameters:

Model	OKRFH-2
Other name	rotary double ampoule sealing flame torch
AC Voltage	220V 50/60Hz
Power	8W
Operating Mode	pedal/automatic
Dimension(mm)	L290W210H290
Height Adjustment	0-150mm
Net Weight	9kg
Accessories Including	1host,1pedal, 2* #C oxyhydrogen nozzles, 1tweezer, 3wrenches, 1*power cord
Optional Machine	1* OH oxyhydrogen generator

APPLICATION：

Oxyhydrogen For Ampoule Melting Sealing

Okay Energy’s ampoule melting sealing machine is adopt to oxygen and hydrogen gas(brown's gas). We developed and designed the portable OH models manual hand ampoule sealer for school and laboratory.We also have successful cases on large industrial oxyhydrogen generator applied for pharmaceutical machinery ampoule filling and sealing machine on the demand of growing pharmaceutical industry.
