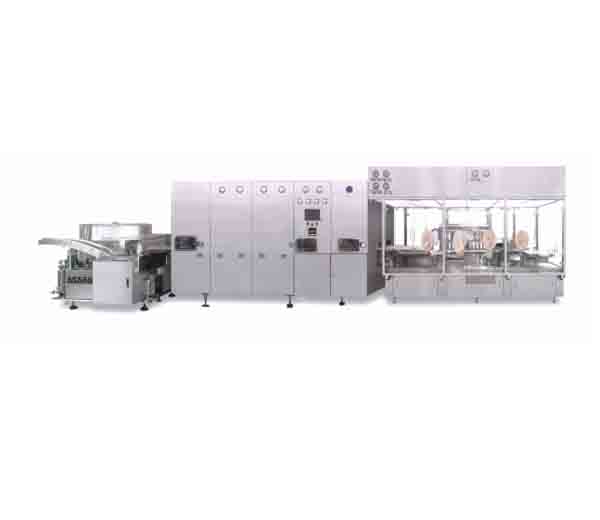

Automatic Ampoule Washing Sterilization Filling Sealing System
The linkage line consists of AXL serties vertical ultrasonic washing machine CMSU series hot air circulation sterilization tunnel, AGL series filling and sealing machine. The linkage line can complete water spray, filling, ultrasonic cleaning and flushing (internal and external), CA flushing(internal and external), preheating, drying and sterilizing to remove heat source, cooling, before and after nitrogen, sealing and other processes.
Technical Parameters
| Suitable Sizes(ml) |
1-20ml |
| Filing Heads |
8 |
10 |
12 |
16 |
| Output(PCS/H |
1-2ml |
21000 |
24000 |
28000 |
40000 |
| 5-10ml |
13000 |
16000 |
18000-22000 |
30000-36000 |
| 20ml |
6000 |
9000 |
12000 |
|
| Power Supply |
380V/50HZ |
| Power Capacity(Kv) |
72 |
72 |
75 |
75 |

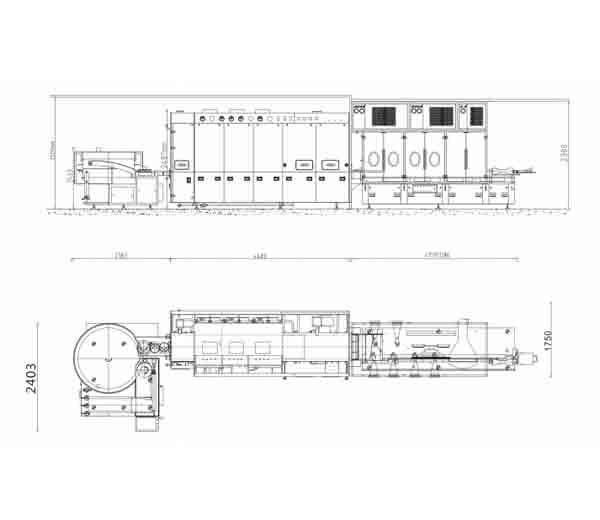

| Overall Dimensions(mm) |
1020*2650*2380 |
10855*2650*2380 |
| Total Weight(Kg) |
8000 |
8000 |
8600 |
8700 |
1. The whole line meets new GMP requirements, and the cleaning effect meets the new Pharmacopoeia standards and requirements;
2. The whole line can adopt straight line layout or wallto-wall-shaped layout to reduce risk of cross-contamination and ensure aseptic level;
3. Applicable specifcation: 1ml-20ml ampoule (as per user's requirement);
4. Production Capacity:12000-36000BPH;
5. Number of filling head: 2-20, to be selected according to output;
6. Filling Accuracy:≤+1% (according to drug characteristics);
7. Choice of various filling pumps: glass pump, metal pump, peristaltic pump, ceramic pump;
8. Compact and simple structure, occupies less area;
9. Stable product performance, easy and reliable operation, beautiful appearance;
10.High degree of automation, fewer operators required;
11. Various sealing gas supply methods such as natural gas or hydrogen and oxygen gas;
12. Optional real-time display and printing system of sterilization temperature;
13. The maximum sterilization temperature of hot air circulation tunnel oven is 350°C;
14. The heat in the hot air circulation tunnel ovenis evenly distributed, and the heat resources removal effect is good;
15. Optional open-RABS isolation protection system and class 100 laminar flow hood protection;
16. Optional high-performance no-bottle-no-filling function and squeeze stop function;
17. The fiing machine can be equiped with onine monitoring system to monitor key factors that afect product quaity (such as dust partidles, planktonic bacternia,wind speed,wind pressure,etc.);
18. Full-line linkage control and operation function;
19. To realze fulyautomatc control and monitor of produchion proces,high precision colored touch screen aperation monitonng,PLCautomatic control& automatc protechion, mainmachine frequency conversion speed regulation and other control technology are used;
20. Applicable for wide range of bottle specifications, and easy to replace mould;
21. The products can be customized according to customer's actual demand.
