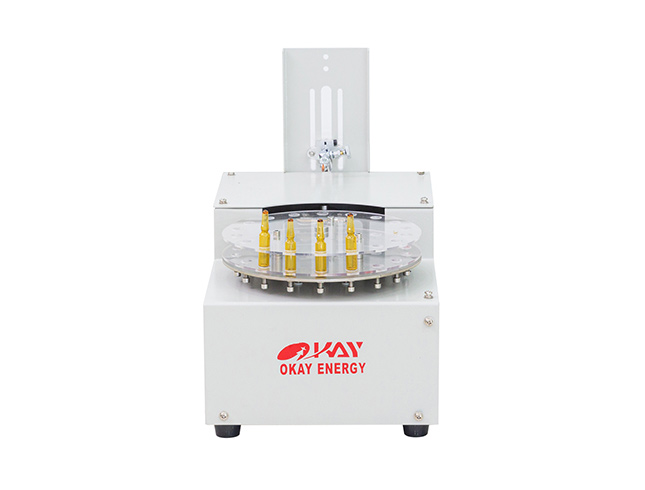

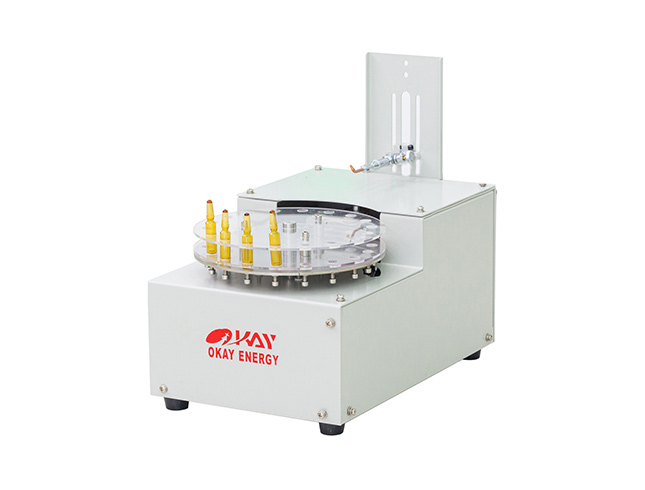

Oxyhydrogen Flame Automatic Rotary Ampoule Sealing Machine

OKRFH-18 18holes rotary automatic tip sealing method oxyhydrogen flame ampoule sealing machine

The OKRFH-18 ampoule sealing torch device use tip sealing method to work together with OH400 oxyhydrogen flame generator.The system seals different size bottles from very small onion skin 1ml to large 100ml ampoules. The workbench can be auto-rotating while do sealing work, no need to pull ampoules. After you put 18 bottles ampoules on the tray, it can start and stop sealing by pedal. Placing, sealing, removing ampoules can be finished at the same time. Therefore, the working efficiency of auto-rotating is 20times that of handle manual ampoule sealing.

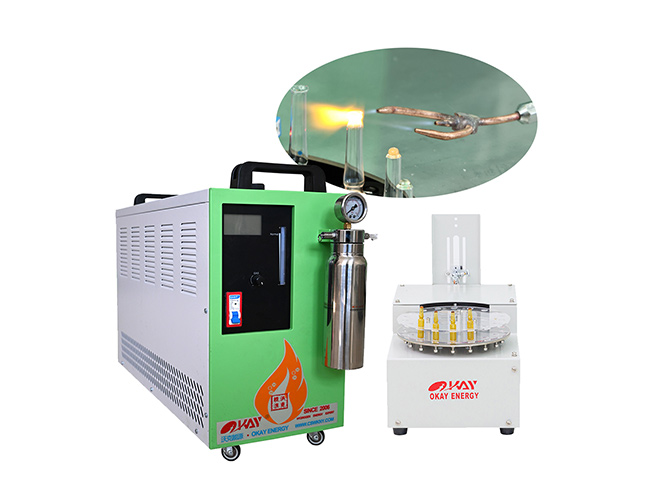

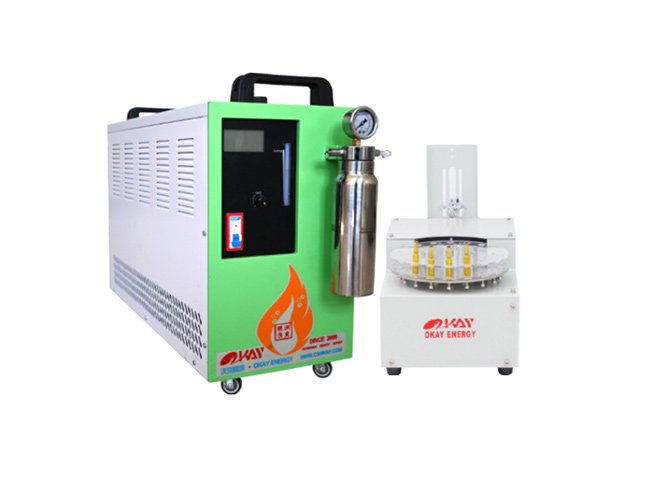

18holes rotary oxyhydrogen flame ampoule sealing machine

18holes rotary oxyhydrogen flame ampoule sealing machine

Technical Parameters

Model	OKRFH-18
Product Name	18holes auto rotary oxyhydrogen flame ampoule sealing machine
AC Voltage(V)	110/220V 50/60Hz
Power	30W
ampoule sealing method	tip sealing
Connected Gas Generator	OH400 oxyhydrogen generator for heating and melting ampoules
Ampoule Size	1-10ml ampoule bottles
Accessories	flame torch1pcs, C/D nozzles1pcs, spanner*3pcs, power cord
Dimension(LWH-mm)	380220405mm
Net Weight(kg)	10

APPLICATION：

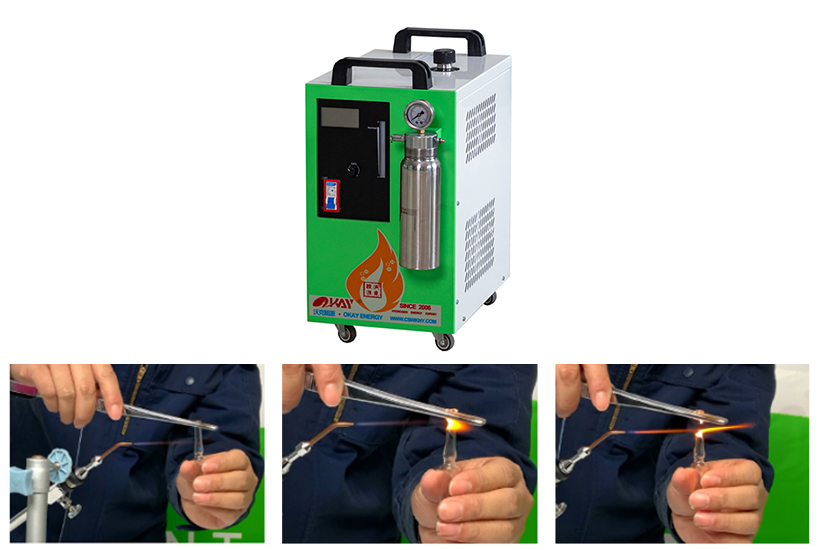

Polishing and Sealing

Polishing and sealing
(1) Acrylic polishing
(2) Glass tube sealing, quartz glass tube sealing
(3) Ampoule bottles sealing
(4) Water injection drawing sealing

View More +

Oxyhydrogen For Ampoule Melting Sealing

Okay Energy’s ampoule melting sealing machine is adopt to oxygen and hydrogen gas(brown's gas). We developed and designed the portable OH models manual hand ampoule sealer for school and laboratory.We also have successful cases on large industrial oxyhydrogen generator applied for pharmaceutical machinery ampoule filling and sealing machine on the demand of growing pharmaceutical industry.

View More +

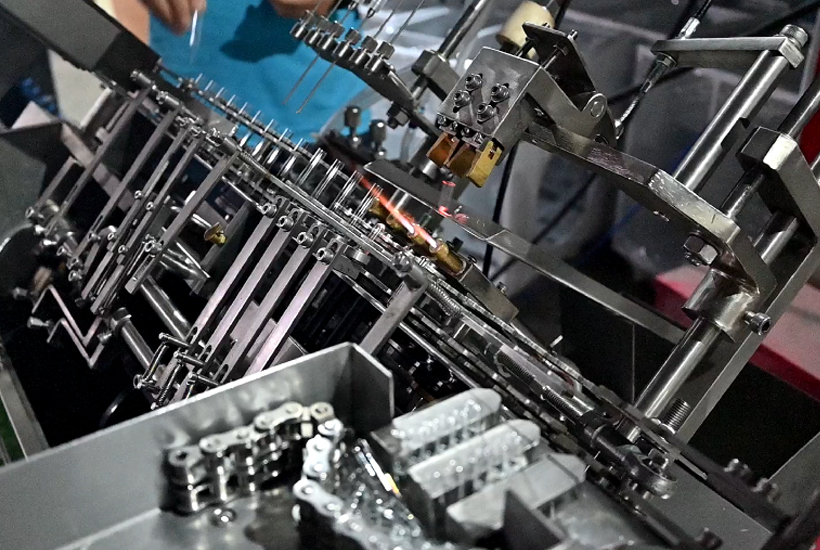

Oxy-hydrogen for automatic ampoule filling and sealing

During the ampoules making and manufacture process,traditional fuel consumption is coal gas or LPG gas.Okay Energy provide you oxy-hydrogen for automatic ampoule filling and sealing fuel saving solutions.Our OH series large industrial OH1000,OH1500,OH2000,OH3000 etc consume some water and electric producing oxy-hydrogen gas as fuel supporting.

View More +

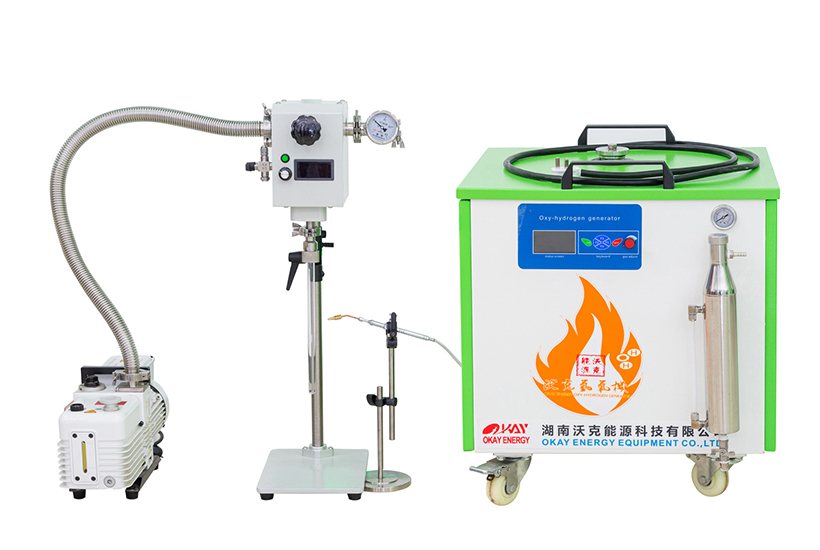

Oxyhydrogen for quartz glass tube melting and sealing

The whole set for quartz glass tube melting and sealing include:1)hho generator,2)vacuum machine,3)tube sealing machine.The mix oxy-hydrogen gas is generated from water by hho generator to form 2800 degree flame.

View More +

Video:

Advantage characteristics:

1. High efficiency ampoule sealing 700-1200bottles per minute.

2. The ampoule bottle filling tray can fill 18pcs ampoule bottles and prevent bottles removable.

3. Adjustable flame torch position and sealing time to get good ampoule sealing result.
4. Concentrated 3000°C flame enables perfect glass fusion.
5. Space-saving units ideal for controlled environments
6. Produces contamination-free seals meeting pharmaceutical standards
