Flashback Arrestor

OKFR-1

Smart flame regulator is an industrial oxygen-hydrogen generator’s supporting equipment. It is specially designed for oxygen-hydrogen flame welding, cutting and sealing.

Voltage (V)

AC 85~265V

Rated Capacity (W)

≤60

Medium

Oxy-hydrogen gas

Working Pressure (Mpa)

0-1.6Mpa

Backfire mode

Electronic intelligent

Relative temperature

-10-40℃

Share

Categories

Oxy Hydrogen Generator

Oxyhydrogen Welding Machine Oxyhydrogen Cutting Machine HHO Combustion Supporting for Saving Fuel

HHO Generator for Welding

Electric Motors Welding Transformer Welding Refrigerator and Air Conditioner Welding Chandeliers and Brass Objects Welding Jewelry Welding Investment Casting Wax Welding

HHO Generator for Cutting

HHO Generator for Boiler Heating

Engine Carbon Cleaning Machine

HHO Engine Carbon Cleaning Machine for Car & Motorbike Steam Car Wash Machine Visible Three-way catalytic converter cleaning machine DPF Cleaning Machine Other Car Care Machine

Sealing Machine

Ampoule Filling and Sealing Machine Rotary Quartz Tube Sealing System

Hydrogen Generator

Hydrogen Inhalation Machine PEM Hydrogen Generator

Water Treatment System

Ultrapure Water System

Flame Torch Flashback Arrestor

Contact

Tel:

+86 18932451962

Whatsapp:

+86 18932451962

Email:

[email protected]

Details

Parameters

Advantage

Description:

Details:

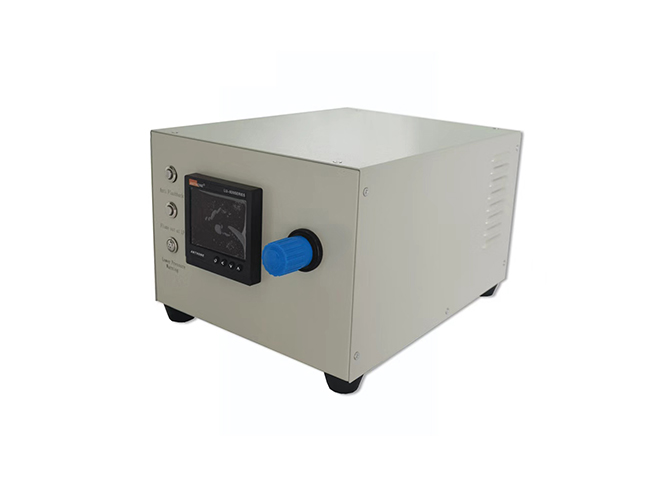

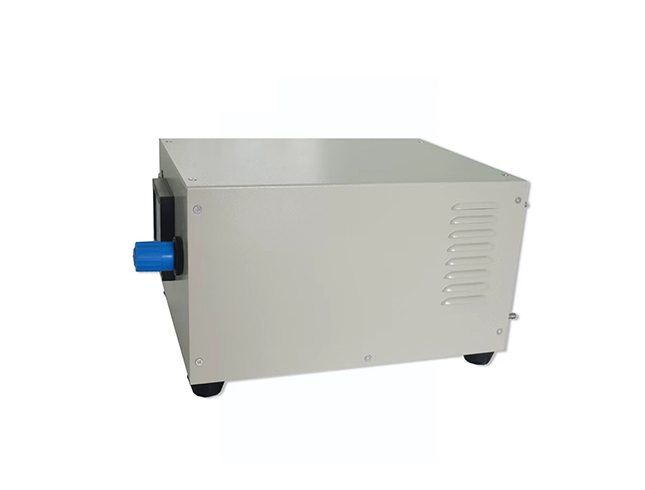

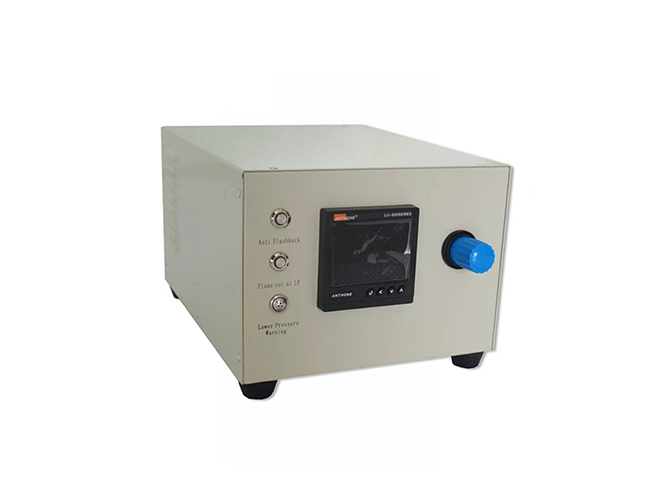

Smart flame regulator OKFR-1

Smart flame regulator can not only control the gas flow,but also quickly collect the backfire signal to cut the gas output. It have the two functions of providing stable oxyhydrogen flame and intelligent anti-backfire protection.

Technical Parameters:

Voltage (V)	AC 85~265V
Rated Capacity (W)	≤60
Medium	Oxy-hydrogen gas
Working Pressure (Mpa)	0-1.6Mpa
Backfire mode	Electronic intelligent
Relative temperature	-10-40℃
Relative humidity (%)	0-80RH%
Dimensions - LWH (mm)	L400W280H220ｍｍ
Net Weight (kg)	8.5KG

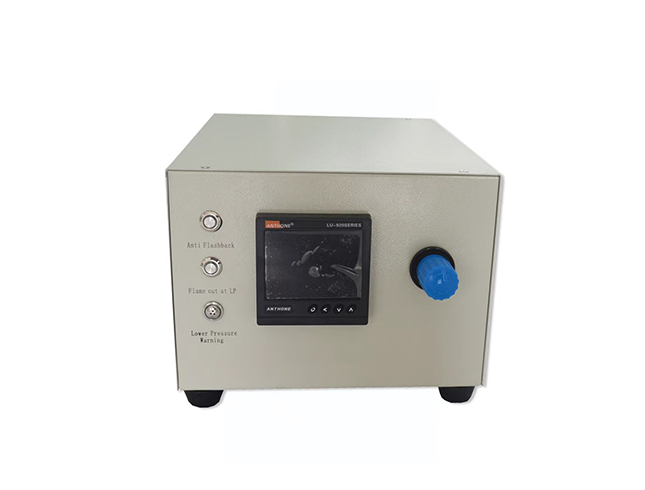

The front view

1-shell
2-gas flow regulator
3-LCD screen
4-Ottomans
5-low pressure alarm button
6-low pressure flameout button
7-backfire button
8-Vent

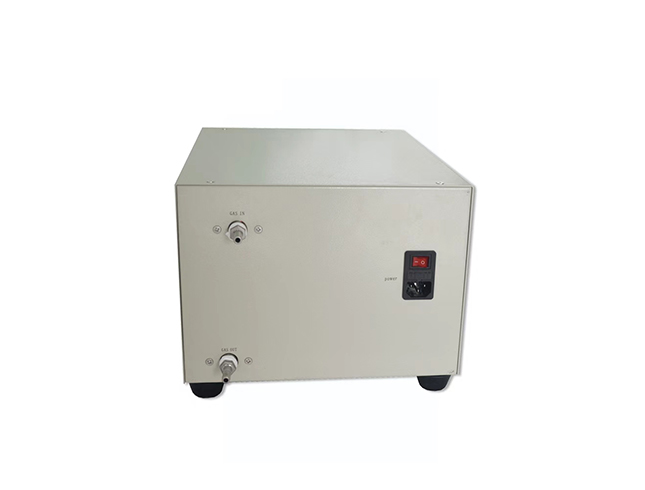

The back view

1, Power interface
2, gas output
3,gas inlet The inlet and outlet are 2 points (1/4) thread. The power interface is a plug-in one.

Feature:

Advantage characteristics:

1.Controller use supper ARM processor, high speed, easy connected, more stable, easy to operate.
2.Gas flow stable and adjustable.
3.Smart block any backfire, Operational safety.
4.Alarm in low pressure, operator can notes the gas flow in time.
5.Fireout in low pressure, operator can easy operate.

Application

Electric motor brazing

Electric motor brazing

Copper brazing

Copper brazing

CNC Metal Cutting with Oxy Hydrogen Gas Cutting System

CNC Metal Cutting with Oxy Hydrogen Gas Cutting System
