No Stripping HHO Flame Machine for Welding Motors Enameled Wire

Contact

TEL:

+86 18932451962

Whatsapp:

+86 18932451962

EMAIL:

info@okayenergy.cn

Details

Parameters

Advantage

Description:

Designed specifically for motor winding applications, the hydrogen-oxygen welder delivers a concentrated 3000°C flame for direct fusion of enameled copper wire—eliminating stripping, spatter, and thermal damage. Integrated multi-level safety systems ensure reliable performance in high-volume stator and rotor production lines, producing consistent, conductive joints.

Ideal for motor manufacturing, electrical component assembly, and winding repair, our solution reduces per-unit energy consumption while improving yield. Built for continuous industrial use, it meets the demands for efficiency and reliability in modern manufacturing environments.

Technical Parameters:

Model Number	OH1500
AC Voltage Requirement	220V
Phase	three phase
Rated Power	4.2 kw
Max. Gas Output	1500L/h(adjustable)
Max. Working Pressure	2 kg/cm2
Max. Water Consumption	0.64 L/h
Water Feed	auto
Dimensions - LWH	585630860mm
Gross Weight	110kg
Ventilation Space Requirement	400mm in each direction

Features:

1. Energy-Efficient & High Efficiency: HHO flame temperature reaches up to 3000°C, with high concentration, fast heating speed, and small heat-affected zone.
2. Operational Safety: On-demand production with no high-pressure gas storage, eliminating explosion risk; equipped with flashback arrestor.
3. Low Operating Cost: Only water and electricity are consumed; no need to purchase bottled gases such as acetylene or oxygen, resulting in low overall operating cost.
4. Oxidation-Free Welding Ensures Conductivity: The hho flame has reducing properties, effectively removing oxide layers during welding, preventing joint oxidation, and ensuring stable conductivity at motor winding connections.
5. Wide Application Range: Suitable for various applications including brazing, cutting, jewelry processing, refrigeration pipe welding, and laboratory glass sealing.

Oxyhydrogen flame ideal for welding industries:

1. Motor Manufacturing

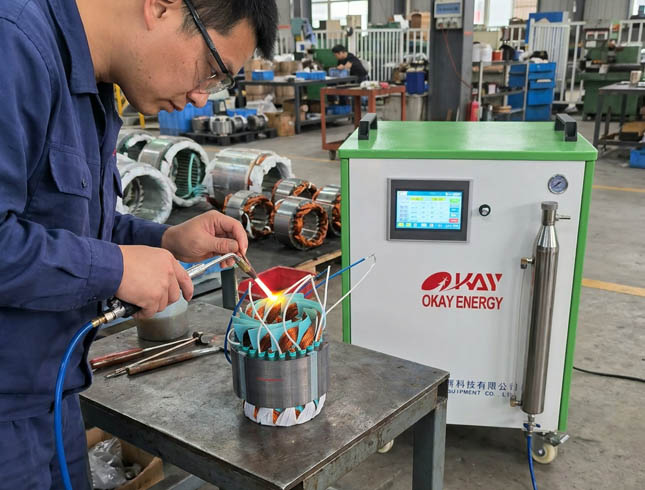

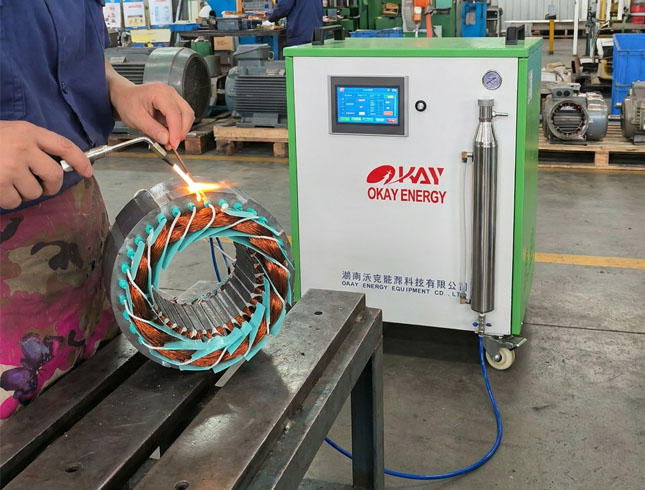

Stator Winding Welding: Used for fusion welding of copper or aluminum wire joints in stators, ensuring reliable conductivity.
Rotor End Ring Welding: Suitable for repairing cast aluminum rotor end rings and connecting rotor bars to end rings.
Enameled Wire Stripping & Welding: Flame simultaneously strips insulation and welds, eliminating the need for pre-mechanical scraping.
Motor Lead Wire Terminal Welding: Used for connecting power lead wires to winding leads, providing strong and oxidation-free joints.

2. Air Conditioner Manufacturing

Compressor Terminal Welding: Used for reliable connection between compressor sealed terminals and internal leads.
Copper Pipe & Branch Pipe Brazing: Suitable for brazing copper pipes to branch pipes, tees, and other fittings in refrigeration piping systems.
Shut-Off Valve & Pipe Welding: Used for welding shut-off valves to connecting pipes in outdoor AC units, ensuring good sealing.

3. Refrigerator Manufacturing

Compressor Sealed Terminal Welding: Similar to AC units, used for internal electrical connections in refrigerator compressors, ensuring long-term sealing.
Evaporator & Condenser Pipe Welding: Used for welding copper pipes, aluminum pipes, and copper-aluminum dissimilar pipes in core refrigeration components.
Suction Pipe & Capillary Tube Welding: Used for parallel or cross welding of suction pipes and capillary tubes in refrigeration systems.
Aluminum Pipe Joint Welding: For aluminum pipes widely used in refrigerators, enabling reliable joining of similar and dissimilar aluminum joints.

4. Transformer Manufacturing

Transformer Lead Wire Welding: Used for connecting transformer winding leads to external terminals, ensuring low resistance.
Copper Busbar & Winding Joint Welding: Suitable for fusion welding of copper busbars to winding ends in high-current transformers, providing high current-carrying capacity.
Foil Winding End Welding: Used for connecting foil winding ends to lead copper busbars in foil-wound transformers, ensuring uniform welding.
Magnet Wire Splice Welding: Suitable for repairing broken magnet wires or splicing for extended length, allowing welding without removing insulation.

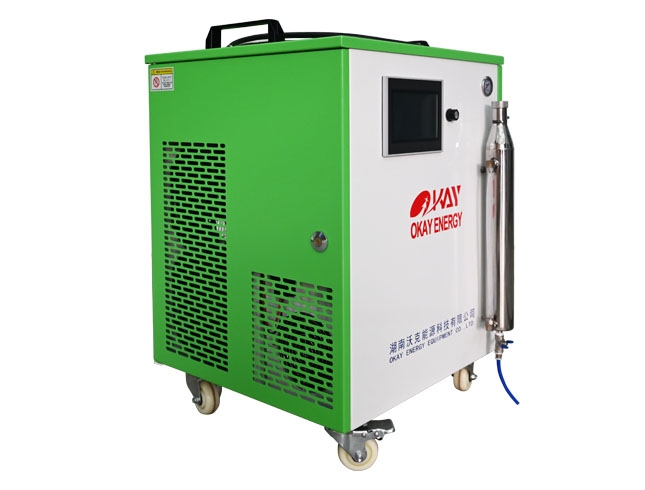

OH1500 enameled wire welding machine
