HHO Generator for Transformer Copper Wire Welding: A Clean Solution for Large Cross-Section Copper Welding

Jun 13, 2026

Traditional gas welding (acetylene, LPG) for rectangular copper wire commonly suffers from carbon-containing flames, excessively large heat-affected zones, and weld point oxidation. HHO welding machines (water welders), with their 3000°C carbon-free oxy-hydrogen flame, offer a cleaner, more precise, and more economical solution for transformer rectangular copper wire welding.
In the manufacturing of transformers, reactors, and other power equipment, rectangular copper wire and copper busbars are the primary conductive materials. The welding quality of these large cross-section copper conductors directly determines the current-carrying capacity and operational reliability of the equipment.

Core Technical Advantages
1. Carbon-Free Flame, Eliminates Copper Oxidation & Contamination
Acetylene flame deposites black ash on copper busbar surfaces during combustion. If these carbon particles into the insulation layer, insulation performance is significantly reduced. The only combustion product of the hho flame is water vapor, there is no impact on copper busbar surface.
2. High & Concentrated Temperature
The hho flame reaches 3000°C and is concentrated without divergence. For butt welding of rectangular copper wire can precisely control the heating zone, effectively protecting adjacent insulation layers.
3. Significantly Lower Operating Costs Than Acetylene

Comparison	Acetylene	HHO Flame
Fuel Cost	Electricity+fuel+ cyliner	Only need electricity, energy saving 35%-60%
Safety	Gas cylinders, with a risk of leakage and explosion	No gas cylinders, no leakage and explosion;built-in anti-fire protecting
Cylinder management	High-pressure cylinder storage + transport + annual inspection	No cylinders, on-demand production
Heath and environment	Oxyacetylene combustion produces toxic gases such as carbon monoxide, carbon dioxide and sulfur dioxide. Hammful to the workers and not friendly to the environment.	Zero carbon emissions processes. Only water vapor after combustion. Non-toxic to the workers and eco-friendly to the environment.

Which Transformer Rectangular Copper Components Are Suitable?

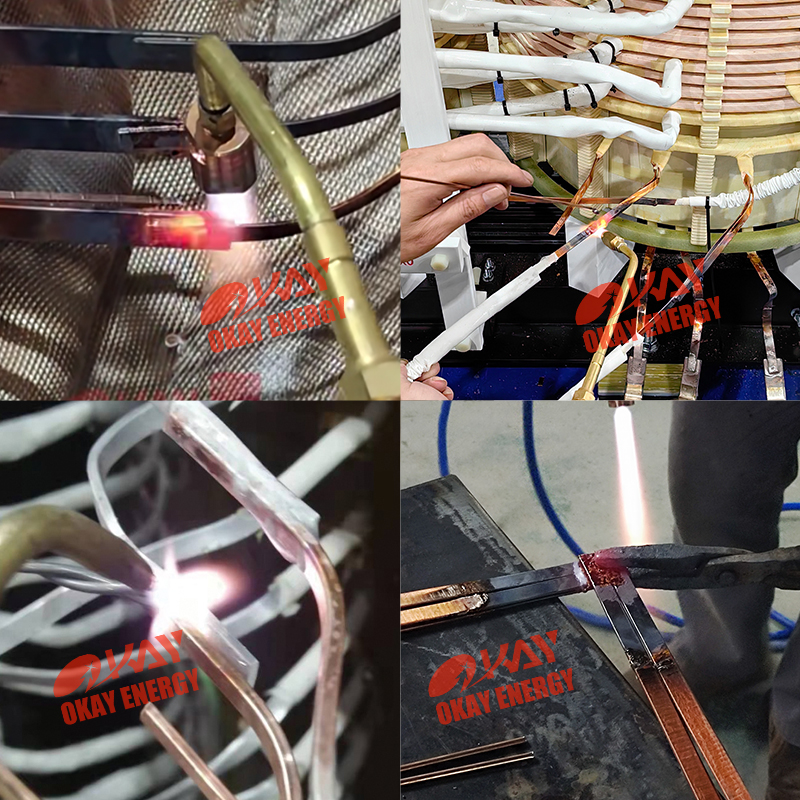

Copper Busbar Butt Welding

Internal copper busbars in transformers require end-to-end butt welding for extension or transition connections between different specifications.

Copper Busbar Lap Welding

At the connection between transformer winding leads and external terminals, copper busbar lap welding is commonly used.

Coil Lead (Rectangular Wire) Welding

Transformer coil leads are typically rectangular copper wires requiring welding to copper terminals or busbars. HHO welders can directly weld bare rectangular copper wire or handle paper-insulated rectangular wire.

With its four core advantages - carbon-free flame, high concentrated temperature, hydrogen reduction effect, and low operating costs - the hho welding machine offers a clean, efficient alternative to traditional acetylene welding for transformer rectangular copper wire applications. Whether for copper busbar butt welding, lead wire connections, or dry-type transformer end sealing, HHO welders can simplify processes, reduce operating costs, and improve product reliability while ensuring weld quality.
