Oxyhydrogen Flame Quartz Tube Vacuum Sealing Machine OK-M210

Pure Performance: Quartz Tube Sealing System with Oxy-Hydrogen Flame Technology

2025-12-12

For applications where precision, purity, and reliability are non-negotiable, such as the advanced materials research. The integrity of a quartz tube seal is paramount.
Okay Energy integrating our proven oxy-hydrogen (HHO) flame technology into a Quartz Tube Sealing System. This solution delivers unmatched cleanliness, safety, and cost-efficiency for quartz tube sealing tasks.

Why Oxy-Hydrogen Flame?
The core of our sealing system lies in its flame source: an oxy-hydrogen (HHO) flame generated by electrolyzing water. This method produces a pure mixture of hydrogen and oxygen gases, which combusts to form a flame with distinct advantages:

Feature	Oxy-Hydrogen Flame(HHO Flame)	Traditional Gas Flames (Acetylene/LPG)
Fuel Source	Water + Electricity	Fossil fuels (gas cylinders)
Flame Type	Straight, concentrated flame	Radiating, less focused
Residue	Zero carbon, no soot or contaminants	Carbon soot, risking contamination
Temperature	Up to 3000°C, adjustable	Lower max temperature (≈2500°C)
Safety	On-demand gas production, no stored high-pressure fuels	Requires hazardous gas storage

The Beauty of Precise Engineering: A System Built for Sealing Quartz Tubes in the Laboratory
Okay Energy's quartz tube sealing system is more than just a torch; it's a complete workstation integrating high-vacuum technology, precision mechanics, and intelligent control.

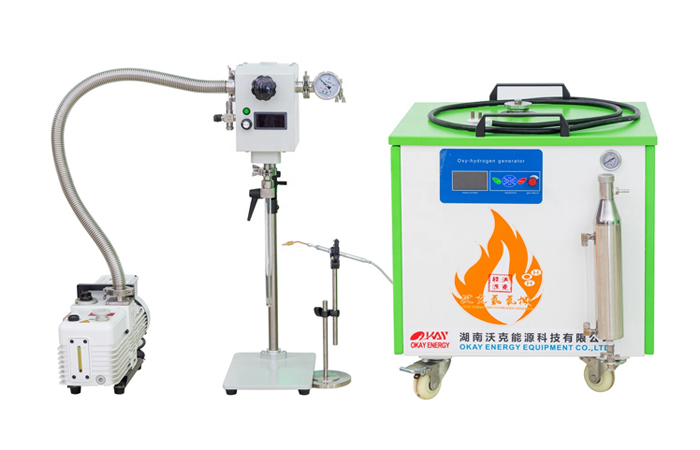

The oxyhydrogen flame sealing system mainly includes three parts.
Rotary quartz glass tube vacuum sealing machine: it can automatically rotate the quartz glass tube, evacuate the tube and filled with inert gas.
The quartz glass tube sealing machine connected with mechanical pumps, molecular pumps or other pump sets.
Oxyhydrogen generator: The oxyhydrogen generator produces oxyhydrogen gas by electrolysis of water, the gas is ignited and turned into a flame to seal the glass tube.

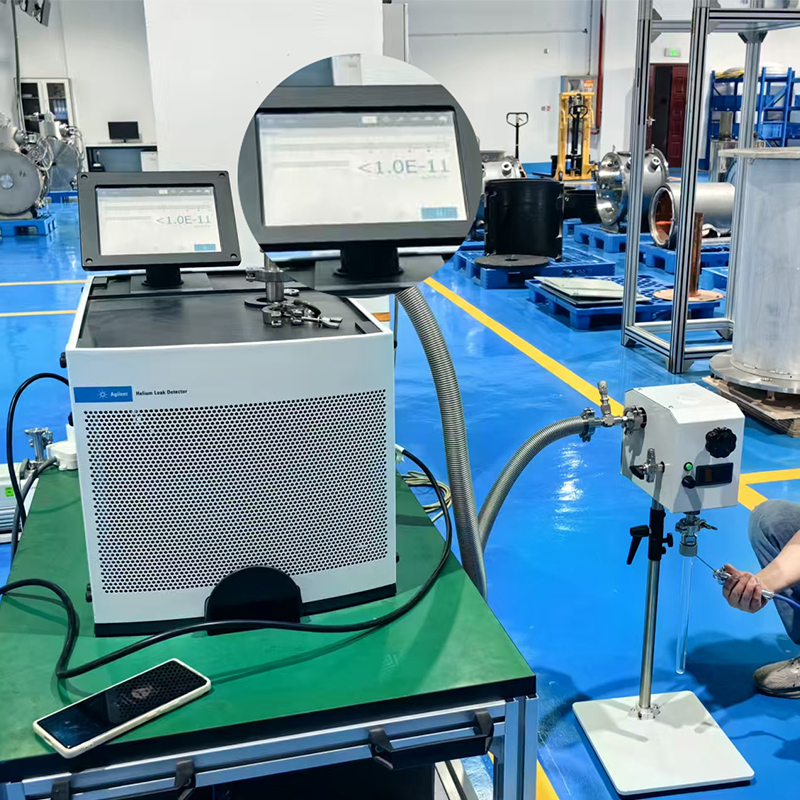

The quartz tube sealing system boasts a maximum rotation speed of 100 rpm, ensuring uniform heating of the quartz tube while maintaining dynamic sealing of the vacuum chamber during rotation. Leakage is better than 1×10⁻¹¹ Pa·m³/s, providing a foundation for high-standard sealing.

Below is a video introducing the structure of our single-station quartz tube sealing machine OK-M210.

The function of isolation valve:
The straight-through isolation valve can be connected with the glass tube.
When putting the glass tube in the glove box for sampling, we can connect the straight-through isolation valve together.
After connecting the glass tube, close the valve, and then install to the quartz glass tube sealing machine, this maintains the vacuum state during material transfer.

Watch How It Works: Sealing Quartz Tube in Action

Why Choose Okay Energy for Your Sealing Needs?
Environmentally friendly: We are the manufacturer of oxyhydrogen generators. The oxyhydrogen flame just producing water vapor after combustion with no carbon residue.
Cost Efficiency: Eliminates recurring gas cylinder expenses—only water and electricity are needed.
Safety: Removes risks associated with stored flammable gases.
Precision: Uniform rotation and adjustable flame allow tailored sealing for any quartz specification.

Okay Energy’s Quartz Tube Sealing System represents a leap forward in combining environmental sustainability with industrial precision. To learn more or request a personalized demonstration, contact our team or visit our product page.
