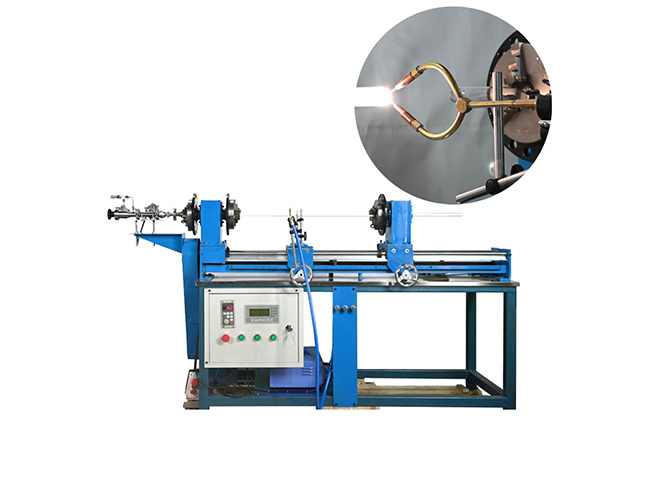

laboratory glass tube crack off machine

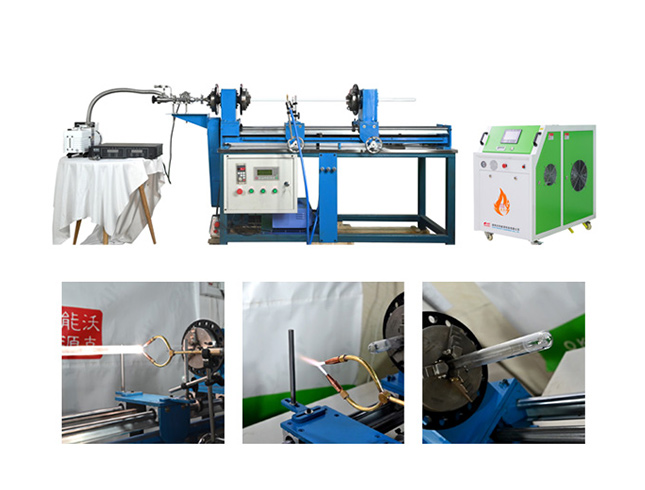

oxyhydrogen flame vacuum sealing scientific glass blowing machine

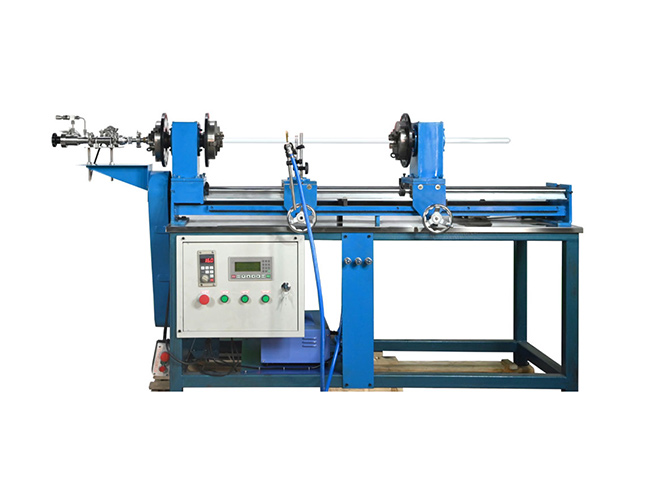

scientific grade glass vacuum sealing horizontal glass working lathe
laboratory glass tube crack off machine
oxyhydrogen flame vacuum sealing scientific glass blowing machine
scientific grade glass vacuum sealing horizontal glass working lathe
Rotary Quartz Tube Sealing System

OK-M30 glass blowing lathe vacuum sealing system

The dynamic sealing technology is adopted to make the quartz tube rotate automatically and vacuum at the same time.The whole glass tube vacuum sealing systems include mechanical pump or molecular pump, vacuum gauge, oxyhydrogen generator and glass blowing
Model
OK-M30
Voltage
220V
Rotating Speed
0-100r/min
Optional Quartz Diameter
8-150mm(Φ)
Application
large-sized borate glass and quartz glass tube
Optical Vaccum Sealing Device
mechanical pump or molecular pump
Share
Details
Parameters
Advantage

Description:

Details:
Oxyhydrogen flame scientific glass vacuum sealing blowing lathe machine OK-M30
The scientific glass blowing lathe machine also known as glass blowing lathe or bench type glass lathe,which is commonly used in precision glass industry for laboratory sealing,thermometer sealing, electrode sealing, glass to metal seals, graded seals and other blowing and forming operations. The lathe is carefully designed for accurate and precision operation. The machine can be equipped with ring chucks and connected with oxyhydrogen generator and vacuum system.

How to do scientific grade quartz vacuum sealing for the glass tube?
The sample is put into the quartz tube and sealed without oxygen and water. The dynamic sealing technology is adopted to make the quartz tube rotate automatically and vacuum at the same time.The whole vacuum sealing systems include mechanical pump or molecular pump, vacuum gauge, oxyhydrogen generator and glass blowing lathe. It can be designed for simple, safety, precision and high efficient sealing operation under required vaccum degree laboratory environment. According to the vacuum degree requirements,you can choose mechanical pump or molecular pump set to vacuum the quartz tube.

Technical Parameters:

Model

OK-M30

Voltage

220V

Name

oxyhydrogen flame glass vacuum sealing blowing lathe machine

Dimension-L*W*H(mm)

1125*445*930

Optional Quartz Diameter

8-150mm(Φ)

Application

large-sized borate glass and quartz glass tube

Feature

simple and convinient operation,high efficiency,safety laboratory environment,customized solution

Used For

laboratory, research institube, university

Optical Sealing Device

oxyhydrogen generator,vacuum pump,vacuum gauge

Features:

Advantage characteristics:
1.For different glass tube diameter and length.The glass blowing lathe machine are specially designed for super dry and clean cuts from glass tube diameter 8-150 mm and cutting lengths 20-400mm.
2.Energy saving gas generator,no gas cylinder.Oxyhydrogen generator can replace acetylene, coal gas, liquefied gas and etc. It has the advantages of high calorific value, concentrated flame, zero pollution, high efficiency sealing, energy saving and convenience.
3.Several automatic safety protection devices.The glass working lathe has built-in solenoid valve switch and electronic flame arrester, which can realize the function of automatic flameout and anti-backfire protection.
4.Customized different accessories available.Providing different glass clamps and joints to achieve high-precision matching of quartz tube and glass columns for better vacuum sealing.
