Three Workstation Rotary Quartz Vacuum Sealing System OK-M320

OK-M320

1-3 customized workstation rotary quartz vacuum sealing system is designed and martched with oxyhydrogen flame generator. It seals quartz tubes for vacuum or inert gas protection.

Model Number

OK-M320

Power

80W

Rotary Speed

0-100rmp(adjustable)

Number of Workstation

1-3pcs

Sealable tube size

8-45mm(OD)

Dimension(L*W*H-mm)

615*350*1065

Weight(kgs)

Description

Details:

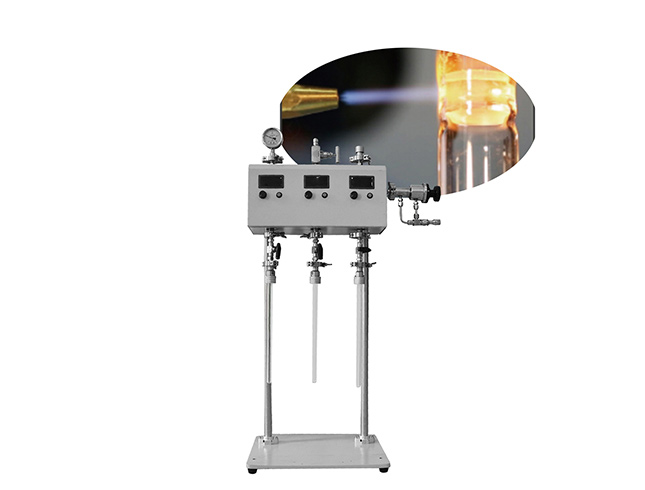

Rotatable quartz vacuum sealing machine OK-M320

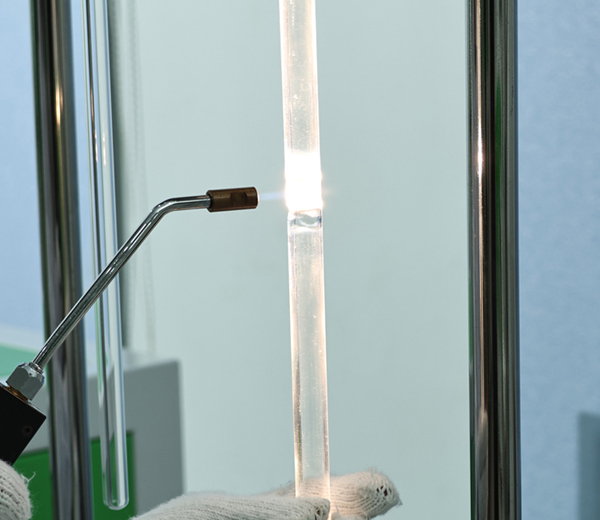

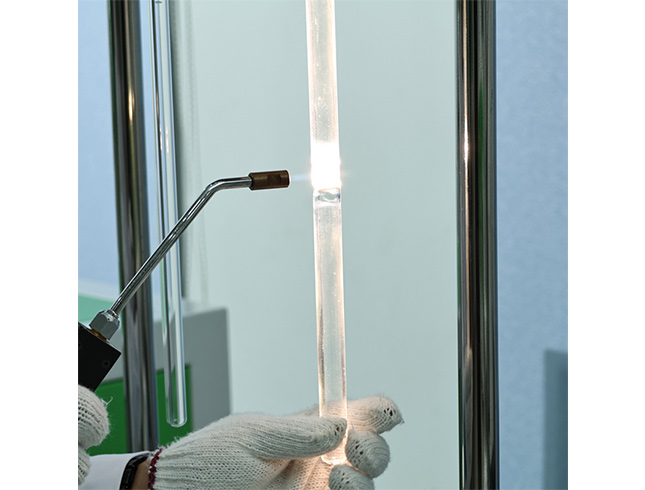

The device is made with high vacuum rotary seal system, high vacuum pipeline, intake port, suction port, vent valve and glass test tube flange. It is used for the vacuum sealing of daily high purity raw materials in university and lab of institution. It could be used in factory to have tube sealing, vacuum sealing of quartz glass tube and vacuum seal of borate glass. The isolation of samples of after-melting of quartz in the mouth of tube and outer air could have effective protection sample that is sensitive to air. Sample could be burned or transported in a long time as well as switching of suitcases after sealing. Quartz tube vacuum sealing machine could provide 1-3 workstation and there could be customization for multiple machines. The whole set include OH series oxyhydrogen generators + quartz vacuum sealing system OK-M320 + vacuum pump

Technical Parameters

Model	OK-M320
Voltage	220V 50/60Hz
Power	24V DC motor,80W
Rotary Speed	0-100rmp(adjustable)
Name	Rotary Quartz Vacuum Sealing Device
Number of Workstation	1-3pcs
Dimension-LWH(mm)	6153501065
Net Weight	32.5kgs
Outer Diameter of Quartz Tube	8-45mm
Length of Quartz Tube	500mm
Thickness of Tube Wall	2mm
Vacuum Joint	KF25
Air Escape Valve	KF16
Speeder	LCD screen
Optional Sealing Device	Oxyhydrogen Generator,Vacuum Pump

Feature

Advantage characteristics:

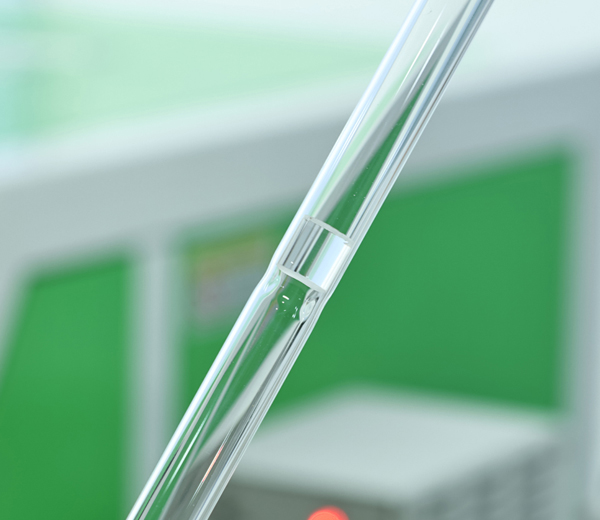

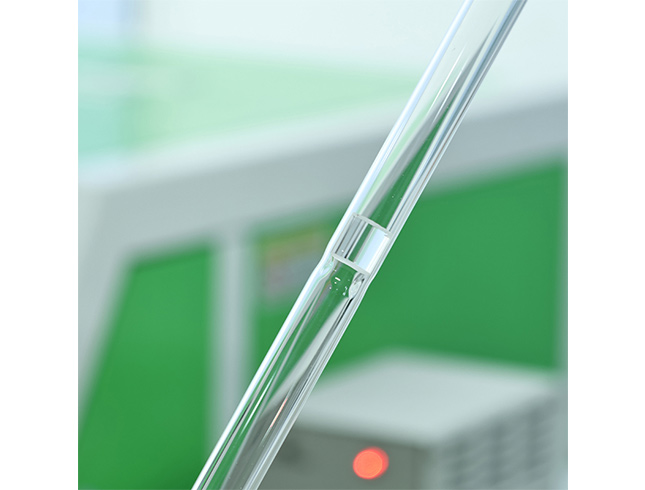

1.Sealing quartz tube under vacuum or inert gas protection.
2.Different sizes of tube fitting can be customized and accomodate vacuum sealing on the different tube diameters.
3.Unique rotary seal flange and adjustable digital rotary speed.
4.The body can be tilted for vacuum sealing of long tubes up to 1m.
